Optical Levels From Bosch

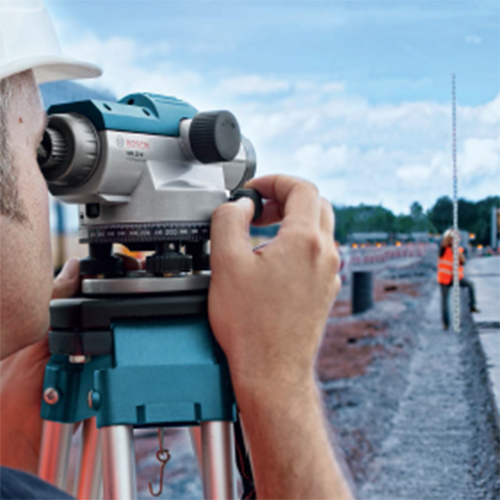

• Equipment Type
• Optical Level

• Accuracy
• 1.6 mm @ 30 m

• Application Media
• Land survey, leveling, construction, civil engineering

• Color
• Blue/Grey

• Connecting Type
• Manual/Tripod mount

• Connectivity Type
• Manual (no electronic connection)

• Diameter
• 32 mm (object lens)

• Dimension (L*W*H)
• 215 mm x 135 mm x 145 mm

• Display Type
• Other, Optical (with horizontal circle)

• Humidity %
• Up to 90% (non-condensing)

• Length
• 215 mm approx.

• Material
• Metal body with robust design

• Measurement Range
• Up to 120 m

• Measuring Units
• Degrees/Gon/Mil (for horizontal circle)

• Mounting
• 5/8 tripod thread

• Operating Temperature
• -10 C to +50 C

• Output
• Optical measurement (viewfinder)

• Power Supply
• No direct electrical power supply required (optical/analog instrument)

• Pressure Range
• Atmospheric

• Process Connection
• 5/8 mounting thread

• Protection
• IP54 (dust and splash protected)

• Range
• Up to 120 m (typical for line of sight)

• Response Time
• Immediate (depends on operator)

• Sensor Type
• Magnetic-damped compensator

• Signal Type
• Mechanical/Analog

• Stability
• Magnetic damping compensator

• Storage Temperature
• -20 C to +70 C

• Temperature Range
• -10 C to +50 C (operation)

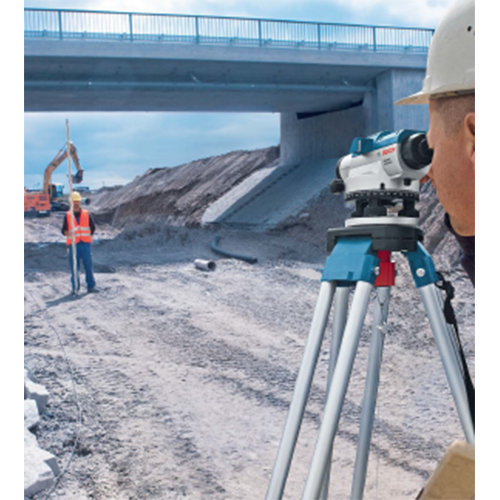

• Equipment Type
• Automatic Optical Level

• Accuracy
• 1.6 mm at 30 m

• Application Media
• Land Survey, Leveling

• Color
• Blue / Black

• Diameter
• 36 mm (Objective Lens)

• Dimension (L*W*H)
• 215 mm x 135 mm x 145 mm

• Display Type
• Other, Visual / Optical Viewfinder

• Humidity %
• Up to 90% RH (Non-Condensing)

• Language
• Universal (No Text on Device)

• Length
• 215 mm

• Material
• High Quality Metal with Plastics

• Measurement Range
• 26x Magnification

• Measuring Units
• Degrees, Gon, Mil

• Mounting
• 5/8-11 Tripod Mount

• Operating Temperature
• -10C to +50C

• Output
• Analog / Visual

• Power Supply
• No Battery Required (Manual Operation)

• Pressure Range
• Atmospheric

• Process Connection
• Tripod Mount

• Protection
• IP54 (Splashproof Protection)

• Range
• Up to 100 m (Visibility dependant)

• Resolution
• 0.5 mm (Smallest Graduation on Stadia)

• Response Time
• Immediate (Manual)

• Sensor Type
• Magnetic Damping

• Signal Type
• Optical

• Stability
• High Stability with Robust Housing

• Storage Temperature
• -20C to +70C

• Temperature Range
• -10C to +50C
